V-Tuft Deburring Brushes
V-Tuft Deburring Brushes
Couldn't load pickup availability
Moderate to Aggressive Burr Removal for CNC Deburring Applications

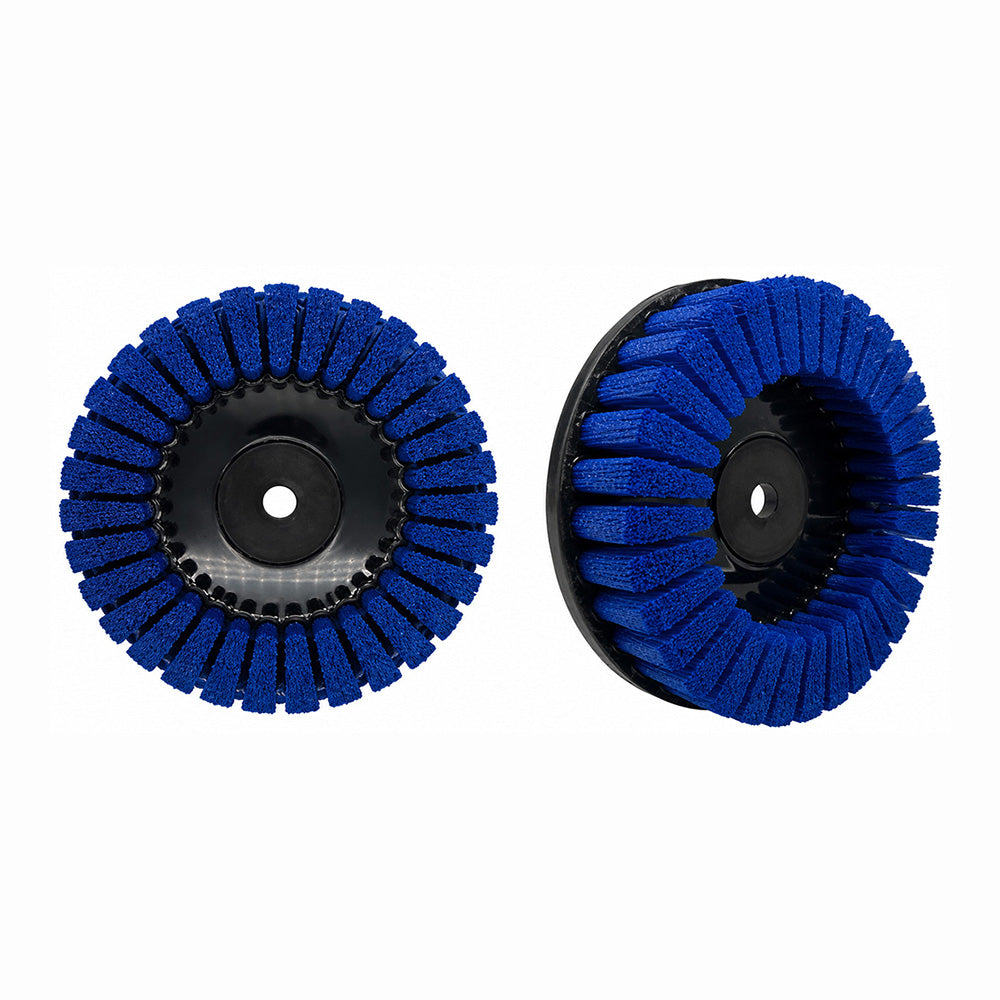

V-Tuft abrasive filament brushes are designed for moderate to aggressive burr removal, edge radiusing, and CNC deburring applications requiring increased cutting action and filament density. The tightly packed filament design helps prevent the brush from conforming around the burr, allowing for more aggressive deburring performance on harder materials and demanding applications.
Commonly used in CNC machining centers, robotic deburring systems, and automated deburring equipment, V-Tuft brushes are particularly effective for aggressive burr removal and consistent edge preparation on steel, stainless steel, aluminum, powdered metal, and fine-blanked components.
Common Applications
- Moderate burr removal
- Aggressive burr removal
- Sharp edge removal
- Edge radiusing
- Fine-blanked part deburring
- Steel component deburring
- CNC deburring
Key Features
- Tightly packed filament design for increased cutting action
- Helps prevent filament rollover around burrs
- Designed for moderate to aggressive deburring applications
- Effective on steel, stainless steel, and harder materials
- Available in 80 and 120 grit ceramic filament options
- Supports wet CNC machining environments
Available Configurations
| Brush Diameter | Filament Grit | Filament Diameter | Max RPM | Part Number |
|---|---|---|---|---|
| 3" | 80 | 0.040" | 2,500 | FM-DBR-0750100 |
| 120 | 0.028" | 2,500 | FM-DBR-0750150 | |
| 120 | 0.040" | 2,500 | FM-DBR-0750200 | |
| 4" | 80 | 0.040" | 2,250 | FM-DBR-0750250 |
| 120 | 0.028" | 2,250 | FM-DBR-0750300 | |
| 120 | 0.040" | 2,250 | FM-DBR-0750350 | |
| 5" | 80 | 0.040" | 2,000 | FM-DBR-0750400 |
| 120 | 0.028" | 2,000 | FM-DBR-0750450 | |
| 120 | 0.040" | 2,000 | FM-DBR-0750500 | |
| 6" | 80 | 0.040" | 1,750 | FM-DBR-0750550 |
| 120 | 0.028" | 1,750 | FM-DBR-0750600 | |
| 120 | 0.040" | 1,750 | FM-DBR-0750650 | |
| 8" | 80 | 0.040" | 1,500 | FM-DBR-0750700 |
| 120 | 0.028" | 1,500 | FM-DBR-0750750 | |
| 120 | 0.040" | 1,500 | FM-DBR-0750800 | |
| 10" | 80 | 0.040" | 1,250 | FM-DBR-0750850 |
| 120 | 0.028" | 1,250 | FM-DBR-0750900 | |
| 120 | 0.040" | 1,250 | FM-DBR-0750950 |
Application Notes:
- Recommended engagement: 0.015”–0.125”
- Recommended feed rate: 30–60 in/min
- 3” & 4”: Compatible with FM-DBR-0583500 Drive Arbor
- 5” & 6”: Compatible with FM-DBR-0583600 Drive Arbor
- 8”: Compatible with FM-DBR-583700 Drive Arbor
- 10”: Use with backup plate
Need Help Selecting the Right Deburring Brush?
Bel Air Finishing can help evaluate brush compatibility, tooling setup, and arbor configurations for your CNC deburring application. Contact us to discuss your application requirements or request a sample evaluation.
