Tufted DOT Deburring Brushes
Tufted DOT Deburring Brushes
Couldn't load pickup availability
Light Burr Removal & Sharp Edge Removal for CNC Deburring Applications

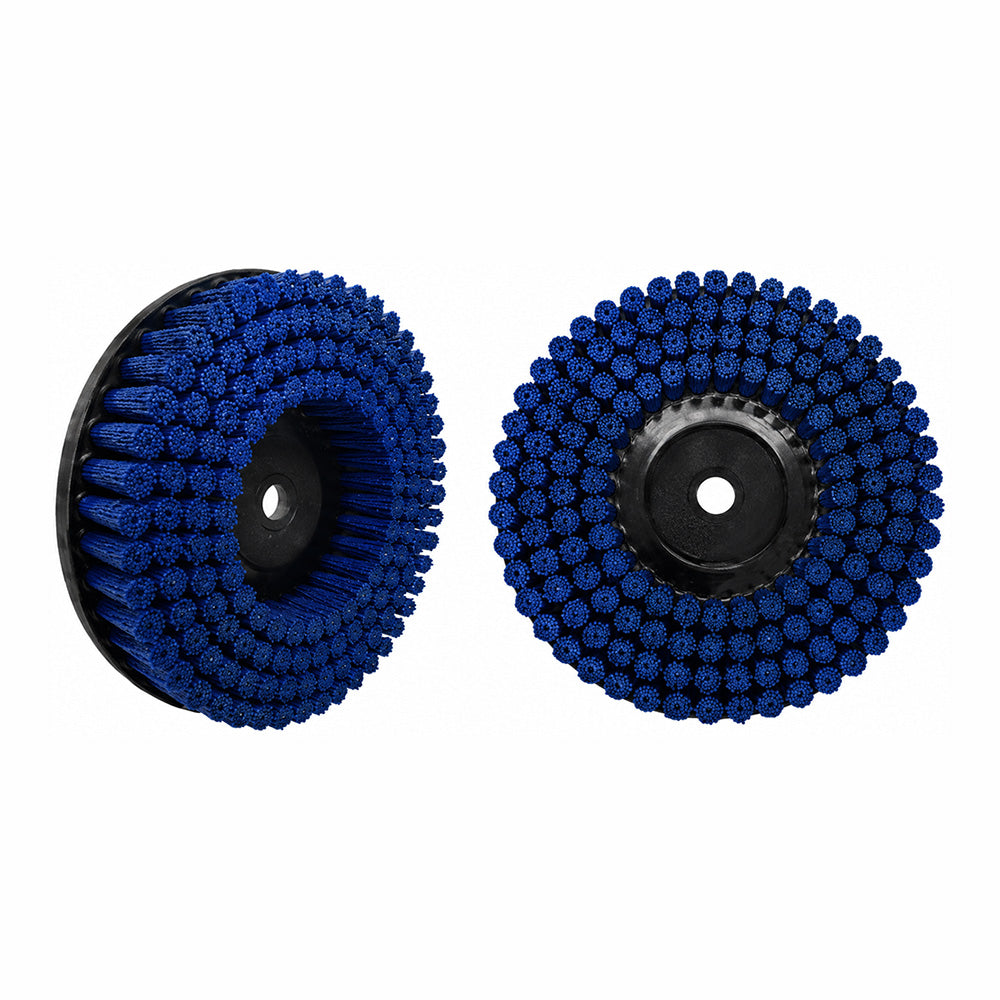

Tufted (DOT) abrasive filament brushes are designed for light burr removal, sharp edge removal, and general CNC deburring applications. The flexible filament design conforms to part geometry for controlled, repeatable deburring across a wide range of machined components.
Commonly used in CNC machining centers and automated deburring applications, these brushes are particularly effective for aluminum machining, edge preparation, and light burr removal without significantly altering part geometry.
Common Applications
- Aluminum machining
- Light burr removal
- Sharp edge removal
- CNC deburring
- Edge radiusing
- Surface preparation
Key Features
- Flexible filament design conforms to part geometry
- Designed for light burr removal & edge preparation
- Supports wet CNC machining environments
- Available in multiple diameters and grit configurations
- Compatible with drive arbors for in-machine deburring
- deal for aluminum machining and general CNC deburring
Available Configurations
| Brush Diameter | Filament Grit | Filament Diameter | Max RPM | Part Number |
|---|---|---|---|---|
| 3" | 80 | 0.040" | 2,500 | FM-DBR-0850100 |
| 120 | 0.028" | 2,500 | FM-DBR-0850150 | |
| 120 | 0.040" | 2,500 | FM-DBR-0850200 | |
| 4" | 80 | 0.040" | 2,250 | FM-DBR-0850250 |
| 120 | 0.028" | 2,250 | FM-DBR-0850300 | |
| 120 | 0.040" | 2,250 | FM-DBR-0850350 | |
| 5" | 80 | 0.040" | 2,000 | FM-DBR-0850400 |
| 120 | 0.028" | 2,000 | FM-DBR-0850450 | |
| 120 | 0.040" | 2,000 | FM-DBR-0850500 | |
| 6" | 80 | 0.040" | 1,750 | FM-DBR-0850550 |
| 120 | 0.028" | 1,750 | FM-DBR-0850600 | |
| 120 | 0.040" | 1,750 | FM-DBR-0850650 | |
| 8" | 80 | 0.040" | 1,500 | FM-DBR-0850700 |
| 120 | 0.028" | 1,500 | FM-DBR-0850750 | |
| 120 | 0.040" | 1,500 | FM-DBR-0850800 | |
| 10" | 80 | 0.040" | 1,250 | FM-DBR-0850850 |
| 120 | 0.028" | 1,250 | FM-DBR-0850900 | |
| 120 | 0.040" | 1,250 | FM-DBR-0850950 | |
| 12" | 80 | 0.040" | 1,000 | FM-DBR-0851000 |
| 120 | 0.028" | 1,000 | FM-DBR-0851050 | |
| 120 | 0.040" | 1,000 | FM-DBR-0851100 |
Application Notes:
- Designed for CNC machining center deburring of aluminum parts.
- Ideal for removing light, loose burrs and sharp edges.
- 8", 10", and 12" brushes are also suitable for dedicated deburring equipment and backup plate/motor setups.
- Recommended engagement: 0.015"–0.125".
- Recommended feed rate: 30–60 in/min.
- 3" & 4": Compatible with FM-DBR-0583500 Drive Arbor.
- 5" & 6": Compatible with FM-DBR-0583600 Drive Arbor.
- 8": Compatible with FM-DBR-0583700 Drive Arbor.
- 10" & 12": Use with backup plate.
Need Help Selecting the Right Deburring Brush?
Bel Air Finishing can help evaluate brush compatibility, tooling setup, and arbor configurations for your CNC deburring application. Contact us to discuss your application requirements or request a sample evaluation.
