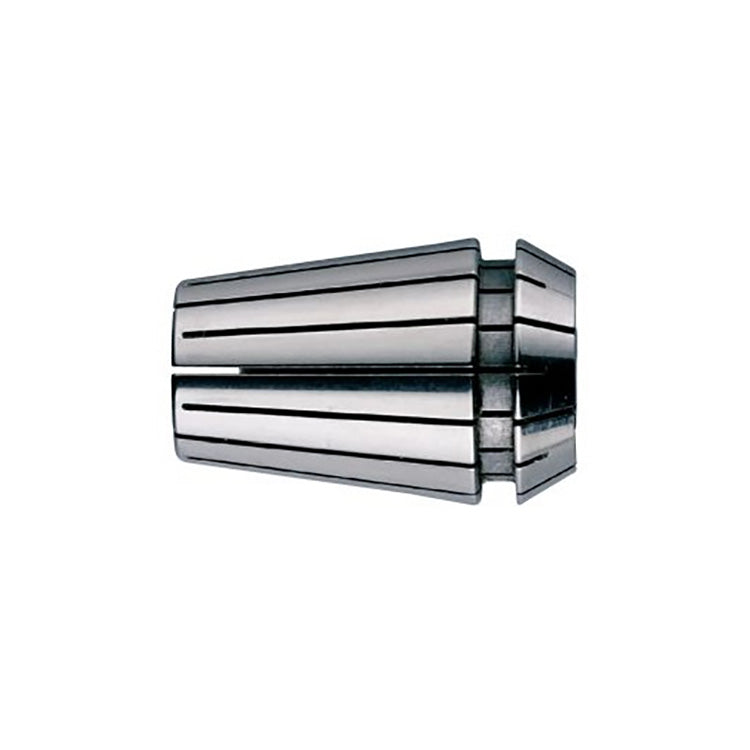

REGO-FIX ER 11 Collet – Ø 6.0 mm

Product Description

The REGO-FIX ER11 Ø 6.0 mm Collet delivers high-precision tool holding for CNC machining, automated deburring, and finishing applications. Manufactured in Switzerland to the DIN 6499 / ISO 15488 standard, this hardened spring-steel collet ensures exceptional concentricity and secure clamping for tools up to 6 mm in diameter.

Its precision-ground design minimizes run-out and vibration for smoother cutting performance and longer tool life. Ideal for pairing with KATO FM-DBR7 Deburring Holders and other Bel Air Finishing CNC systems, the ER11 collet supports carbide rotary burrs, mounted grinding tools, and brushes used in deburring, polishing, and chamfering operations.

Key Features

• Precision-ground to ≤ 6 µm (0.00024 in) TIR for exceptional tool concentricity and surface quality
• Manufactured in Switzerland from hardened spring steel for lasting accuracy and durability
• Ideal for CNC deburring, milling, and polishing — the perfect companion to KATO DBR7-series holders

Technical Specifications

• Collet Type: ER11
• Nominal Bore: Ø 6.0 mm
• Clamping Range: 5.5 – 6.0 mm
• Run-Out Tolerance: ≤ 6 µm (0.00024 in)
• Standard: DIN 6499 / ISO 15488
• Material: Hardened spring steel
• Surface Finish: Polished
• Dimensions (L × D × H): 0.6 × 0.6 × 1.0 in
• Weight: 0.012 lb
• Country of Origin: Switzerland
