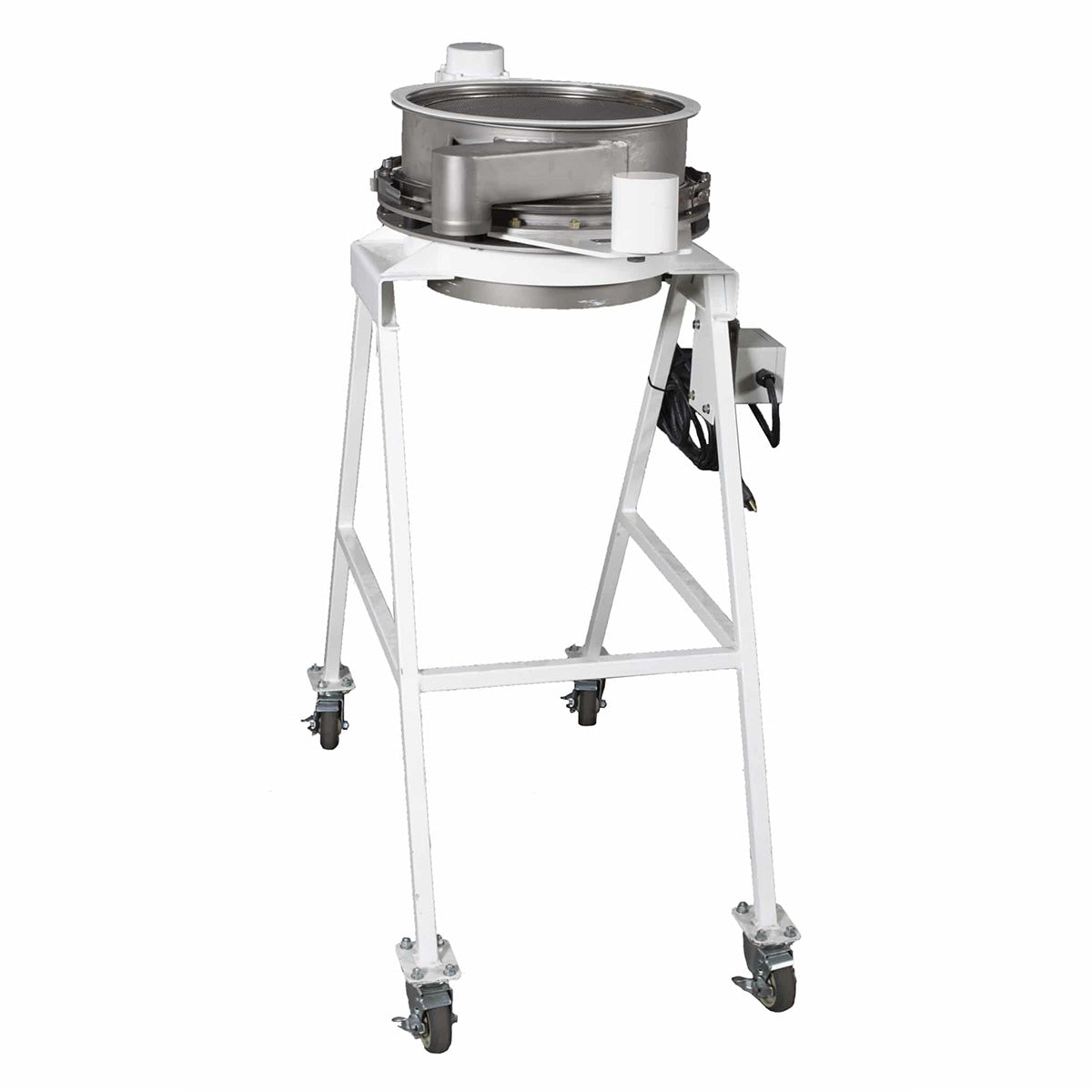

MS-3600S Benchtop Media Separator/Classifier

The MS-3600S is a compact, benchtop media separator/classifier designed to efficiently classify and separate worn process media. By removing undersized pieces that are no longer usable, the unit ensures consistent finishing quality. It can also be used to screen very small parts from process media. Built from durable 304 stainless steel with a carbon steel mobile stand, the MS-3600S provides long-lasting reliability in demanding finishing environments.

• Portable benchtop design with integral stand
• 304 stainless steel separation unit with carbon steel stand
• Air-operated vibrator (80–100 psi, 40 CFM)
• 1.3 sq. ft. screening area
• Upper side discharge included; standard bottom discharge from full screen diameter
• User maintenance manual and spare parts list included

Specifications:

• Overall dimensions: 32” W × 41.5” D × 47.75” H
• Air requirement: 80–100 psi, 40 CFM
• Construction: 304 stainless steel (separator), carbon steel (stand)

Available Screens (Sold Separately)

Stainless steel 18” screens with the following opening sizes:

• 1”, 3/4”, 5/8”, 9/16”, 1/2”, 7/16”, 3/8”, 5/16”, 1/4”
• 3/16”, 0.159”, 0.132”, 0.108”, 0.0954”, 0.0742”

Optional Accessories

• Bottom discharge cone (4” diameter)
• 90° bottom discharge cone (4” diameter)
• Floor stand with swivel pivot
• Custom table-top mounting
• 18” clear vinyl plastic cover

Note: Screens and accessories are sold separately.
