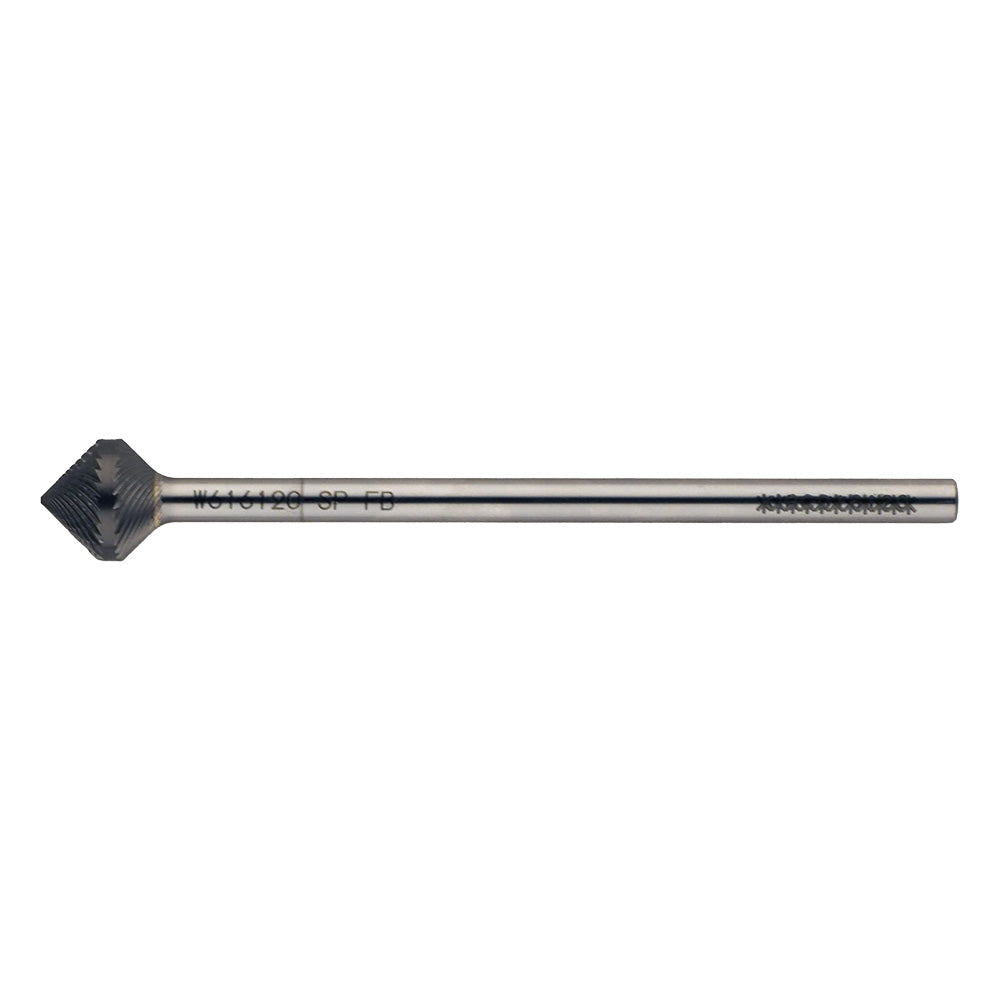

KATO W616120-SP-FB Carbide Rotary Burr – Long Shank (Front & Back)

Product Description

The KATO W616120-SP-FB Carbide Rotary Burr features a 16 mm head and extra-long 120 mm shank for superior reach in deep or large parts. Its cross-cut flute design maintains cutting stability while minimizing vibration, ideal for automated CNC deburring with KATO DBR7-1D holders. The 90° tip transmits cutting forces evenly, allowing precise and repeatable chamfering in high-volume production..

Condition: Brand New

Key Features:

• Extended 120 mm shank for deep deburring access
• 16 mm head supports stable chip evacuation
• Cross-cut design reduces resistance and improves finish quality
• Compatible with DBR7-1D holders for front & back deburring
• Built for reliable use in automated CNC machining

Specifications

• d₁: 0.63 in (16 mm)
• d₂: 0.24 in (6 mm)
• L₀: 4.72 in (120 mm)
• L₁: 0.51 in (13 mm)
• Cutting Sides: Front & Back
• Cut Type: Cross Cut
• Tip Angle: 90°
• Feature: Long Shank
Compatible Holders: KATO DBR7-1D
