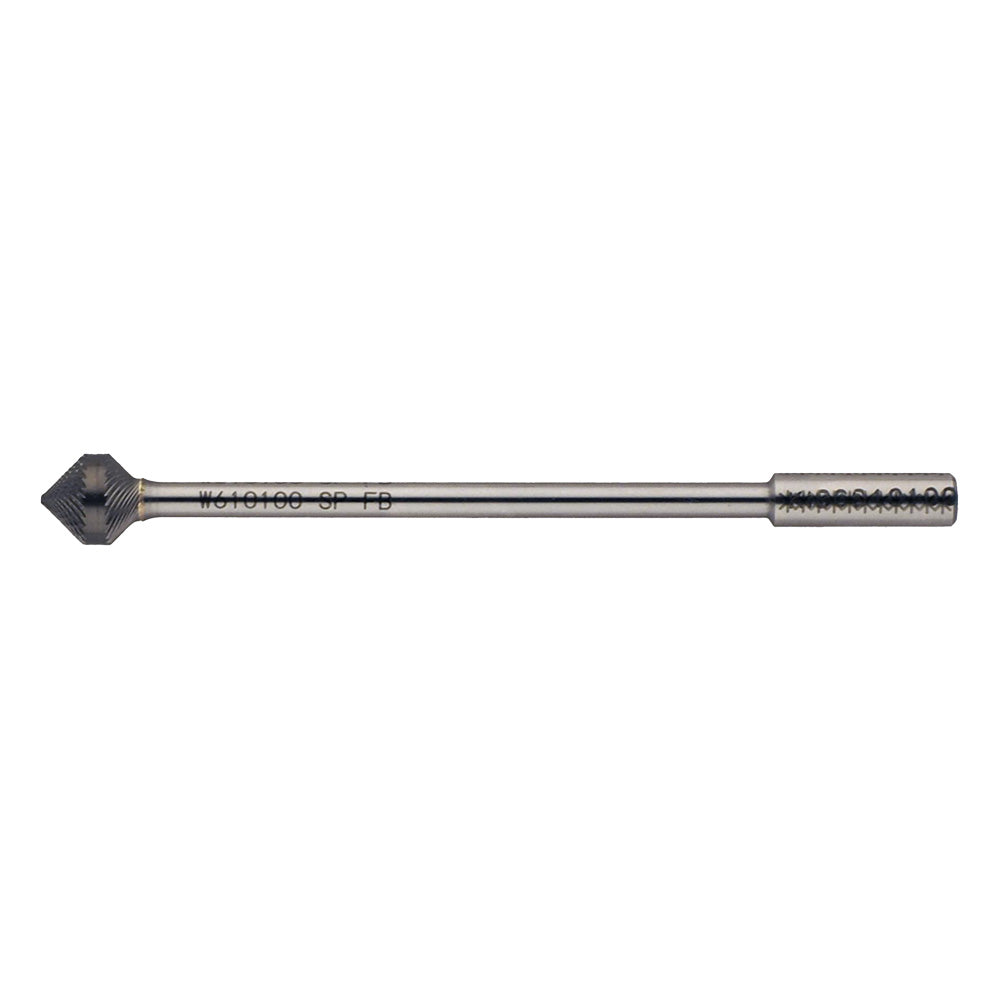

KATO W610100-SP-FB Carbide Rotary Burr – Small Head, Long Shank

Product Description

The KATO W610100-SP-FB features a 10 mm cutting head and an extended 100 mm shank, providing precise control for deep or narrow features. Its cross-cut geometry delivers stable chip formation and reduced chatter during front- and back-side deburring. The 90° tip ensures accurate alignment with the deburring holder’s Z-axis expansion, maintaining consistent results even in confined or hard-to-reach areas.

Condition: Brand New

Key Features:

• Small 10 mm head for intricate or tight features
• Long 100 mm shank for deeper part access
• Cross-cut pattern for controlled, efficient cutting
• Compatible with KATO DBR7-1D holders for front & back deburring
• Designed for high-speed CNC and robotic use

Specifications

• d₁: 0.39 in (10 mm)
• d₂: 0.24 in (6 mm)
• L₀: 3.94 in (100 mm)
• L₁: 0.39 in (10 mm)
• Cutting Sides: Front & Back
• Cut Type: Cross Cut
• Tip Angle: 90°
• Feature: Small Head, Long Shank
• Compatible Holders: KATO DBR7-1D
