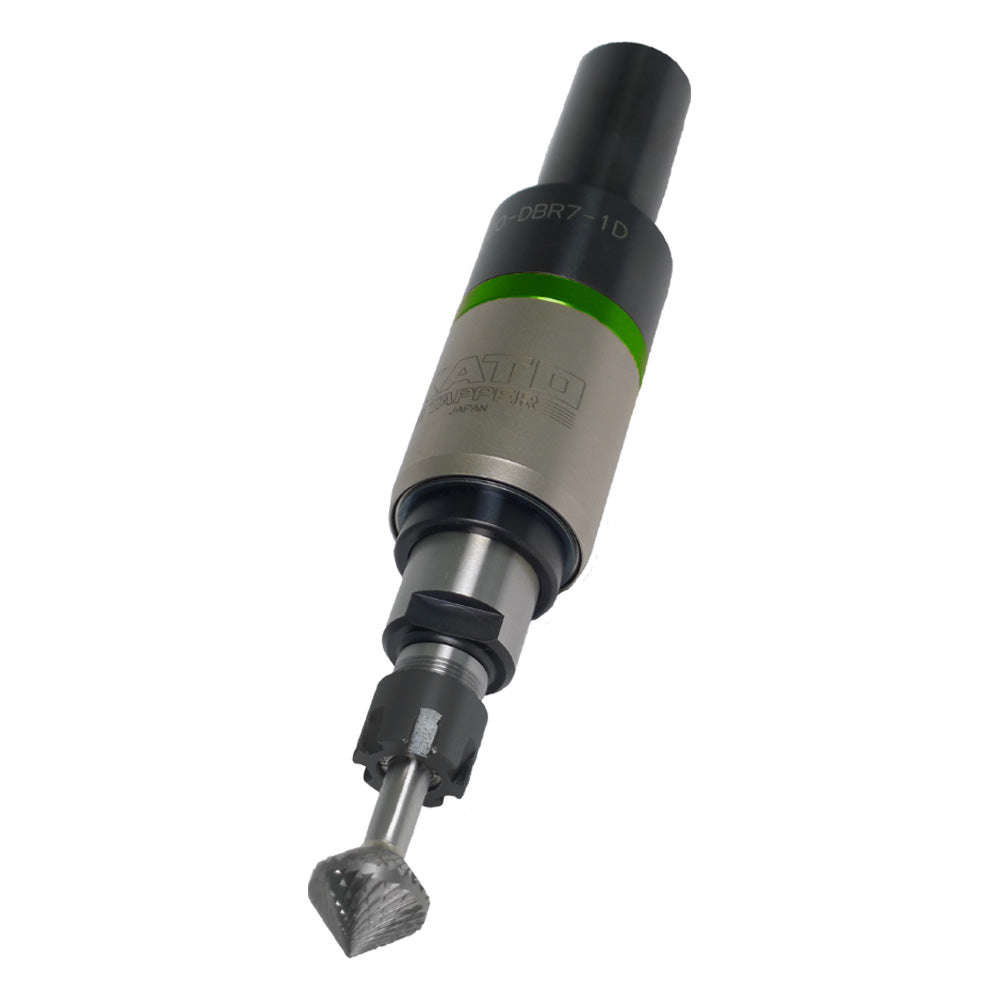

KATO FM-DBR7-1D-G Deburring Tool Holder – Medium Spring Load (Green)

Product Description

TThe KATO FM-DBR7-1D-G Deburring Tool Holder (Soft Spring Load) is designed for precision deburring of delicate or thin-walled materials. Its light-tension spring offers excellent control for front- and back-side deburring without distorting softer metals or small components. Ideal for fine finishing applications and light burr removal in CNC machining environments.

Distributed exclusively in North America by Bel Air Finishing, this versatile deburring holder offers reliable automation and reduced rework for general manufacturing environments.

Condition: Brand New

Key Features

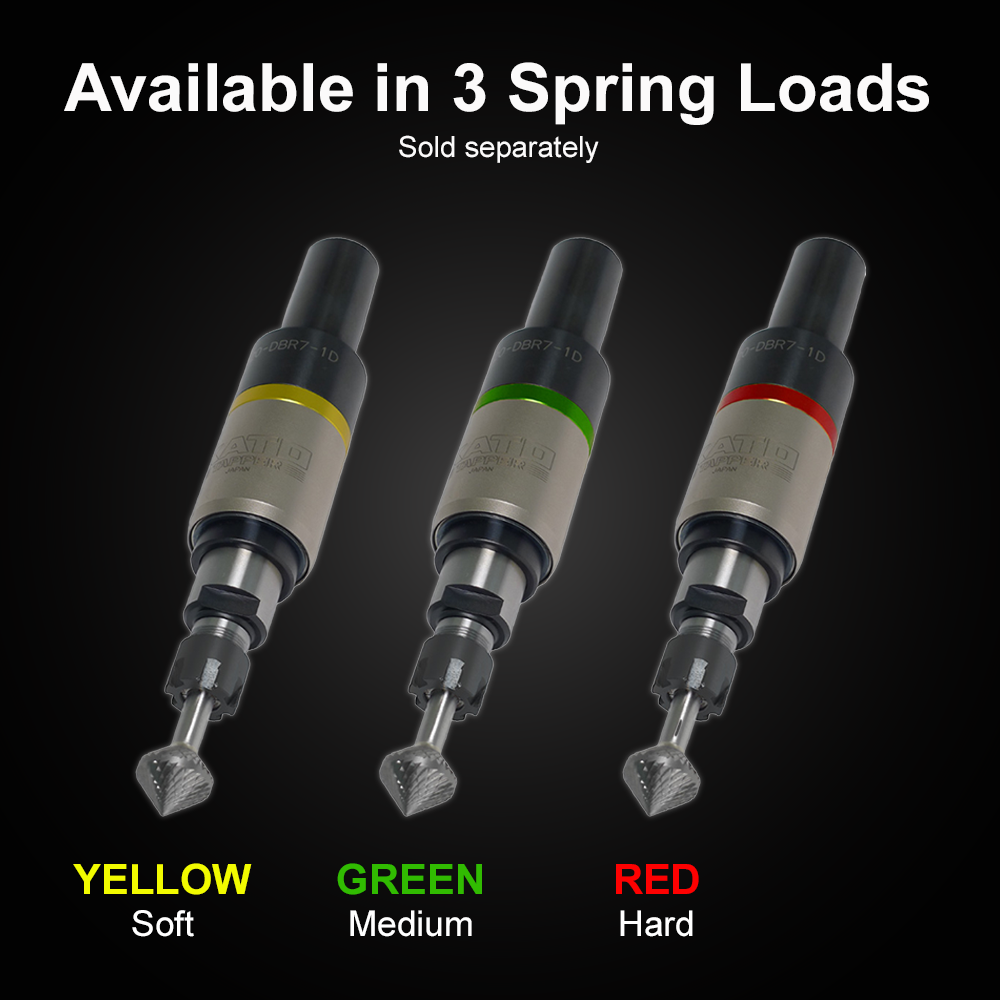

• Balanced medium spring load (Green) for general-purpose applications
• Front & back deburring in one pass – extends and retracts for both sides without tool change
• Telescopic mechanism – absorbs dimensional errors and prevents over-cutting
• Stable cutting – maintains uniform deburring volume across parts
• Easy CNC program setup – simple to integrate into machining center workflows
• Supports ø3 to ø7 shanks – broad tool compatibility
• Dustproof design – ensures reliable long-term use

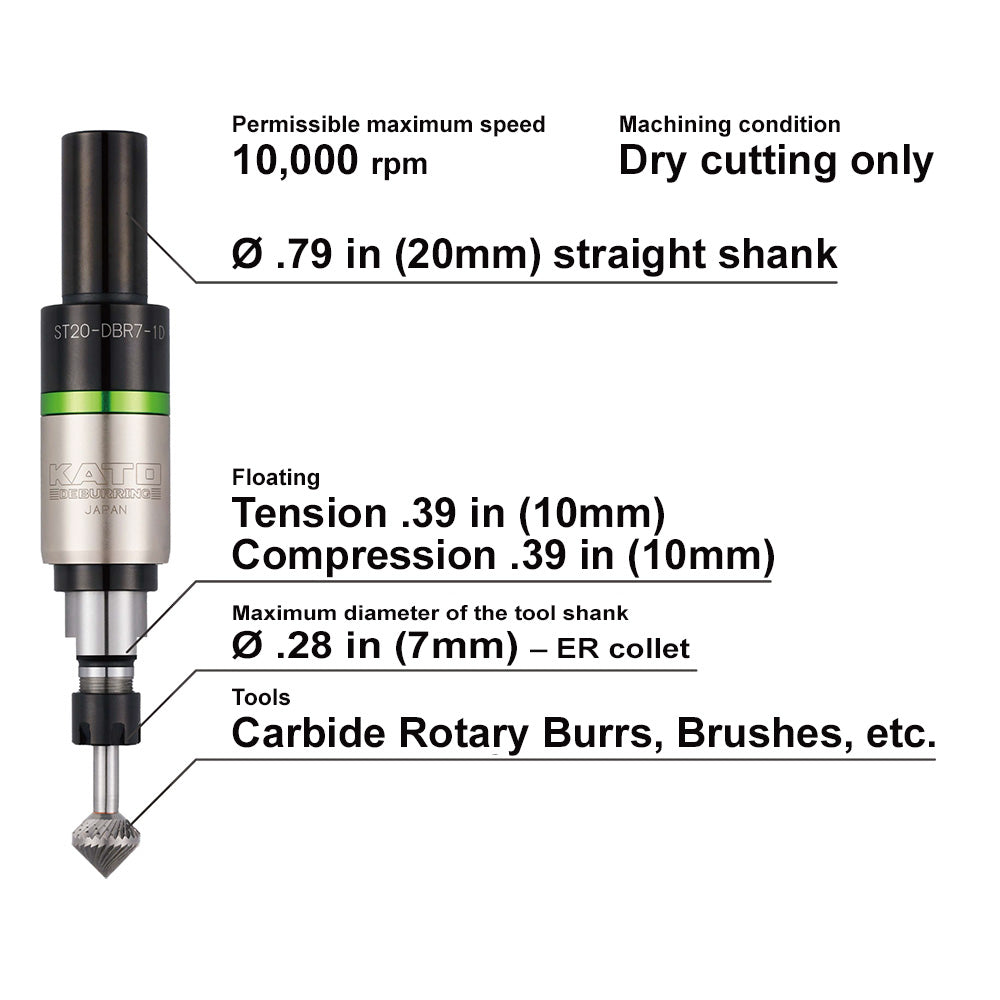

Specifications

• Maximum operating speed: 10,000 rpm
• Maximum tool diameter: ø7 (with ER11 collet)
• Tip shaft float amount: ±10 mm
• Shank: ST20
• Cutting style: Dry cutting
• Suitable tools: Carbide rotary burrs, mounted grinding wheels, etc.
• Weight: .041 kg

Dimensions

• Overall length (L₀): 100 mm
• Body length (L₁): 65.5 mm
• Body diameter (C₁): 30 mm
• Collet section diameter (C₂): 16 mm
• Tension (F₂): 10 mm
• Shank diameter (d₂): Ø20 mm
• Shank length (ℓ₂): 40 mm
• Tool shank capacity (d): Ø3 – Ø6 mm
• Collet type: ER11
• Spanner size: E11M
• Weight: 0.41 kg

Optional Accessories

• Dedicated wrench ES11M
• ER collets (for ø3–7 tools)
