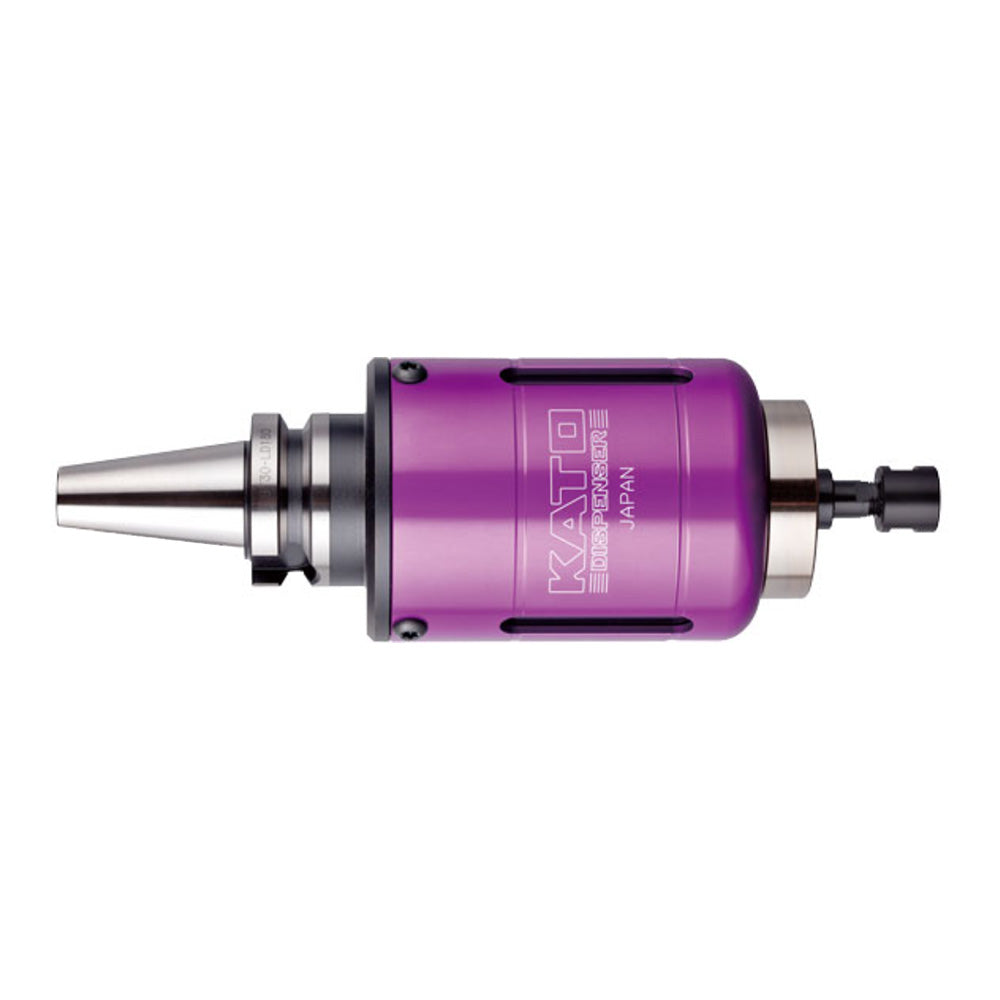

FM-DBR180 Liquid Dispenser for CNC Machining
FM-DBR180 Liquid Dispenser for CNC Machining
Couldn't load pickup availability
Product Description
The FM-DBR180 Series Liquid Dispenser automates tapping and cutting oil application directly within CNC machining operations, eliminating manual brush application. Designed for vertical and horizontal machining centers, it provides controlled, repeatable lubrication with dispensing of up to 0.5 ml per cycle.
Available with BT30, BT40, BT50, and STT32 shank configurations and Standard or Large Tap nozzle options.
Key Features
- Automated oil application – eliminates manual brush application
- Controlled dispensing – applies up to 0.5 ml per cycle
- CNC compatible – works with vertical and horizontal machining centers
- Pinpoint application – delivers cutting fluid directly where needed
- Visual fluid monitoring – makes remaining fluid easy to check
- Multiple shank options – available in BT30, BT40, BT50, and STT32
-
Optional long nozzle – provides additional reach when needed
Specifications
| Model | Shank | Tap Size | Nozzle | Overall Length (L0) | Weight |
|---|---|---|---|---|---|
| FM-DBR180-BT30-SD | BT30 | M2–M12 | Standard | 7.14" (181.4 mm) | 4.0 lb (1.80 kg) |
| FM-DBR180-BT30-LT | BT30 | M12–M22 | Large Tap | 7.34" (186.4 mm) | 4.0 lb (1.80 kg) |
| FM-DBR180-BT40-SD | BT40 | M2–M12 | Standard | 7.69" (195.3 mm) | 6.2 lb (2.80 kg) |
| FM-DBR180-BT40-LT | BT40 | M12–M22 | Large Tap | 7.89" (200.3 mm) | 6.2 lb (2.80 kg) |
| FM-DBR180-BT50-SD | BT50 | M2–M12 | Standard | 7.14" (181.4 mm) | 13.0 lb (5.90 kg) |
| FM-DBR180-BT50-LT | BT50 | M12–M22 | Large Tap | 7.34" (186.4 mm) | 13.0 lb (5.90 kg) |
| FM-DBR180-STT32-SD | STT32 | M2–M12 | Standard | 6.38" (162 mm) | 4.8 lb (2.16 kg) |
| FM-DBR180-STT32-LT | STT32 | M12–M22 | Large Tap | 6.57" (167 mm) | 4.8 lb (2.16 kg) |
Additional Specifications:
- Maximum discharge volume: 0.5 ml
- Discharge stroke: 0.24" (6 mm)
- Tap size range: M2–M22
- Shank options: BT30, BT40, BT50, STT32
- Nozzle options: Standard, Large Tap
Cutting Fluid
The FM-DBR180 is designed for the controlled application of tapping and cutting oil. Compatible cutting oils may vary by application. Contact Bel Air Finishing for fluid selection and compatibility recommendations.
Optional Long Nozzle
An optional extended nozzle is available for applications requiring additional reach or access to recessed lubrication points.
Nozzle & Shank Dimensions
Standard Nozzle:
Large Tap Nozzle:
