Bel Air Finishing
FM-D-T06 Centrifugal Spin Dryer
FM-D-T06 Centrifugal Spin Dryer
Couldn't load pickup availability

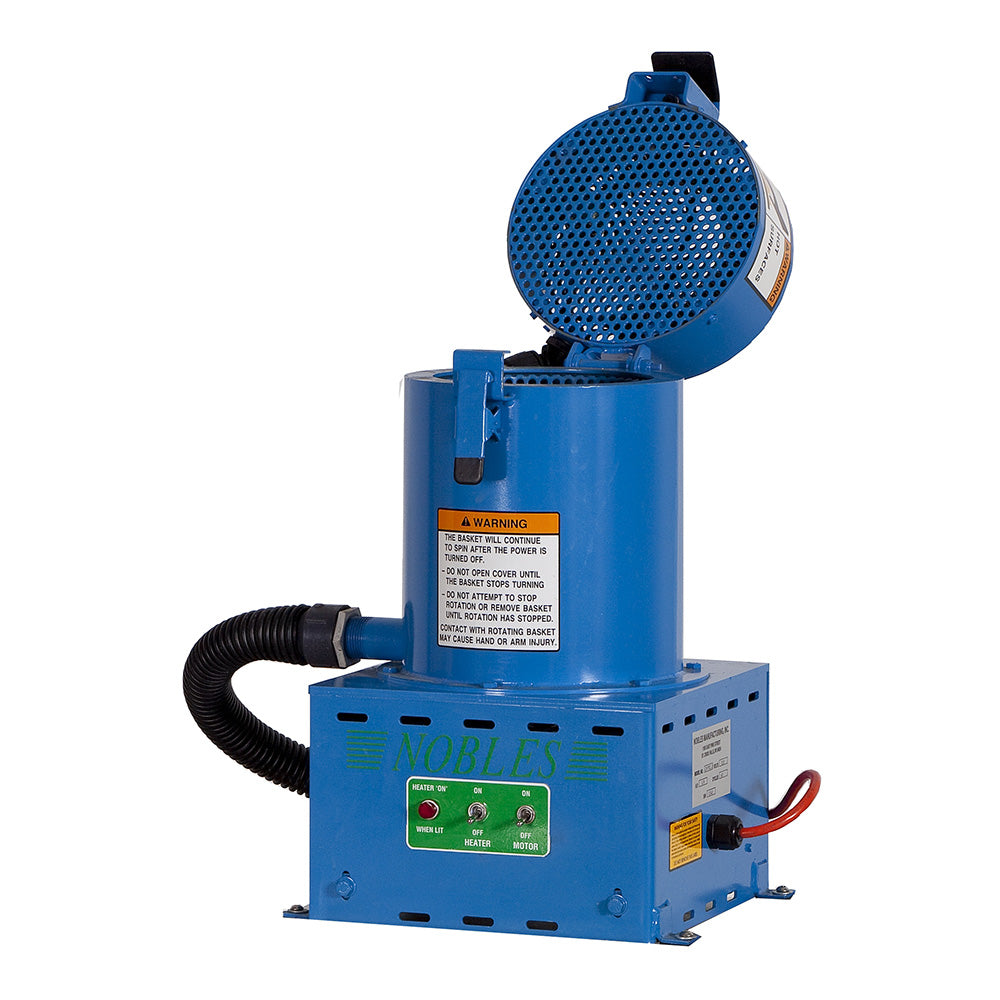

The FM-D-T06 is a compact bench-top centrifugal spin dryer designed for drying small, delicate parts after washing, rinsing, wet finishing, plating preparation, and other production processes. Its direct-drive motor spins at 1,075 RPM to remove moisture efficiently while maintaining a small footprint for bench-top installation.
This standard configuration includes electric heat and accepts a separately sold 6” diameter × 6” high basket. Built with a welded carbon steel process chamber and base, the FM-D-T06 provides a practical drying solution for lower-volume production, laboratory, and process-development applications.
Key Features
- Compact bench-top design for small parts and lower-volume applications
- Accepts a 6" diameter × 6" high basket
- 7 lb load capacity
- 1/8 HP direct-drive motor operating at 1,075 RPM
- Electric heat with on/off switch
- Welded carbon steel process chamber and base
- Simple on/off operation; timer packages available as optional upgrades
- 6 ft grounded power cord and crating included
Standard configuration includes:
- Carbon steel process chamber for a 6” diameter × 6” high basket
- Carbon steel base with angle-iron mounting feet
- Electric heat, 110/115V, with on/off switch
- On/off operation with no timer
- 1/8 HP direct-drive motor
- 1,075 RPM motor speed
- 6 ft grounded power cord
- On/off switch
- 7 lb load rating
- Crating included
Baskets are sold separately.
Specifications
| Model | FM-D-T06 |
|---|---|
| Dryer Type | Bench-Top Centrifugal Spin Dryer |
| Basket Capacity | Accepts 6" diameter × 6" high basket |
| Load Capacity | 7 lb |
| Process Chamber | Carbon steel |
| Base | Carbon steel with angle-iron mounting feet |
| Motor | 1/8 HP direct drive |
| Motor Speed | 1,075 RPM |
| Standard Voltage | 115V |
| Heat | Electric heat with on/off switch |
| Controls | On/off switch; no timer included |
| Power Cord | 6 ft grounded cord |
| Overall Dimensions | 12 ¾" × 12 ¾" |
| Shipping Weight | 70 lb |
| Crating | Included |
Optional accessories and upgrades
Control packages
- Analog Timer Package
- Digital Timer Package
- Analog Temperature Control Package
- Digital Temperature Control PackageM
Basket options
- FM-D-06PP.125: 6”×6” polypropylene basket, 1/8” perforations
- FM-D-06PP.187 40M: 6”×6” polypropylene basket, #40 stainless steel mesh
- FM-D-06RND: 6”×6” 304 stainless steel basket, #40 mesh with 0.015” openings
Other available configurations
- 220V option
- Stainless steel base / construction option
- Additional basket styles and configurations
Contact Bel Air Finishing for pricing on optional controls, alternate voltage, stainless steel construction, and basket selection.
