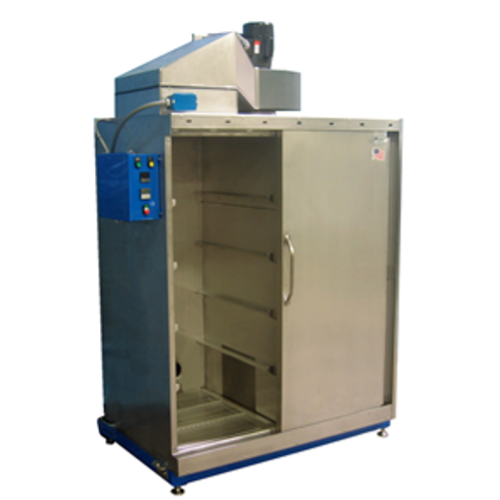

FM-D- LH4825 Front Load Hot Air Convection Dryer (New)

Configured Industrial Unit – 15kW Electric Heat The FM-D-LH4825 is a front load hot air convection dryer engineered for controlled industrial drying applications. This configured unit features downward vertical airflow, digital temperature control, and heavy-duty stainless steel construction.

Key Features

• 5 kW electric heat (460V / 3PH)
• 1200 CFM downward heated airflow
• Digital readout temperature controller
• MERV-4 removable filtration
• Manually operated horizontal rolling door
• Cycle timer with light tower status indication
• 200 lb load capacity

Chamber & Construction

Constructed from double-wall heli-arc welded T304 stainless steel with 1” high-temperature insulation, the drying chamber measures 25” (L-R) × 45” (H) × 30” (F-B).

A removable stainless steel grate serves as a basket rest rated for loads up to 200 lbs.

Control & Safety

The integrated control package includes illuminated switches for heat and blower, a safety interlock preventing heater operation without active airflow, and a high-temperature cutout that interrupts power above 250°F.

The standard cycle timer provides light tower status notification without shutting down the heater, preventing cooldown between loads.

Optional shutdown configuration available upon request.

Specifications

• Model: FM-D-LH4825
• Heat Input: 15 kW
• Voltage: 460V / 3PH
• Air Flow: 1200 CFM
• Internal Dimensions: 25” × 45” × 30”
• Overall Dimensions: Approx. 64” × 37” × 96”
• Filtration: MERV-4 (HEPA optional)

Optional Equipment & Accessories

The FM-D-LH4825 can be configured with the following optional equipment:

• Stainless Steel Shelving Unit – Stainless steel angle shelving superstructure installed within the chamber, including one bottom permanent shelf and three removable grate shelves with approximately 12” vertical spacing.
• Custom Stainless Steel Baskets – Available in various sizes, mesh configurations, and load capacities based on part size, weight, and processing requirements.
• Side-Stream HEPA Filtration System – Optional side-stream HEPA filtration with dedicated blower and duct connection, providing approximately 300 CFM of filtered airflow and 99.9% efficiency at 0.3 microns.
