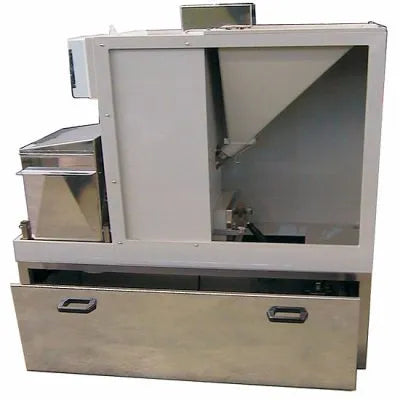

FM AS1 Hydronic Separator – Laboratory Unit

The FM AS1 Hydronic Separator is designed for fast, efficient separation of parts and media in mass finishing operations. Built with heavy-duty stainless steel and ½” polypropylene construction, this unit uses water pressure to separate media and parts, recirculating water to conserve resources and reduce operating costs. With simple operation and variable pressure control, the FM AS1 is ideal for labs, job shops, and production environments requiring efficient separation.

Condition: Laboratory Unit – Discounted (2 available)

Key Features

• Separates up to 300 lbs. of ceramic or plastic media in just 3 minutes
• Media and parts are automatically sorted into their own bins for easy retrieval
• Simple operation — just turn on, load hopper, and you’re finished in minutes
• Heavy-duty stainless steel and ½” polypropylene construction for durability
• Uses water pressure to separate media and parts, even when sizes are similar
• Recirculating water system conserves resources and reduces operating costs
• Easy to operate with variable pressure adjustment via frequency inverter

Specifications

• Model: FM AS1
• Dimensions: 52” W × 24” D × 71” H
• Weight: 330 lbs
• Electrical: 220V, 50/60 Hz, 1 Phase
• Feature: Water flow adjustment via frequency inverter
