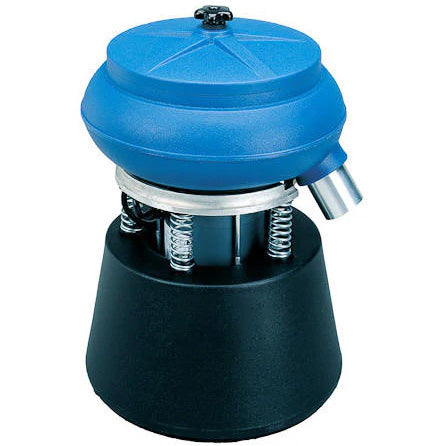

FM-025 Benchtop Vibratory Finisher – 0.25 cu. ft.

The FM-025 Benchtop Vibratory Finisher is a compact system designed for precision deburring, polishing, and cleaning of small components. This mini vibratory finisher is built for small manufacturers, jewelry makers, and precision industries, delivering consistent, controlled vibratory action for uniform, repeatable results.

With a 0.25 cu. ft. working capacity, the FM-025 is ideal for small batch processing, prototype work, and applications where space and process control are critical. The polyurethane-lined bowl, adjustable amplitude, and integrated sound cover provide reliable, low-noise operation, while the 2″ discharge chute with expansion plug and drain supports efficient media and compound management.

Key Features

• 0.25 cu. ft. capacity – Ideal for small batches and precision applications
• Polyurethane-lined bowl – Durable construction for consistent performance
• Removable bowl with lid – Simplifies part and media handling
• Adjustable amplitude control – Fine-tune finishing intensity
• 2″ discharge chute with expansion plug – Easy media unloading
• Integrated drain – Supports wet processing and compound flow-through
• Sound cover included – Reduces operating noise
• Compact benchtop design – Perfect for labs, jewelry, and R&D environments


Typical Applications

• Jewelry finishing (gold, silver, brass, bronze, stone, costume jewelry)
• Precision aerospace components
• Medical and pharmaceutical parts
• Electronics and micro-components
• Small automotive components and trim
• Machine shops and job shop environments

Specifications (FM-025)

• Model: FM-025
• Working Capacity: 0.25 cu. ft.
• Motor: 1/4 HP
• Overall Height: 19.5″
• Approx. Diameter: 14.5″
• Approx. Toroidal Dimensions: 4″ × 5″
• Approx. Media Fill: 10 lbs
• Approx. Part Capacity: 40 oz
• Discharge Chute: 2″ diameter with polyurethane expansion plug
• Drain: Integrated bowl drain
• Amplitude: Adjustable
• Sound Cover: Included
