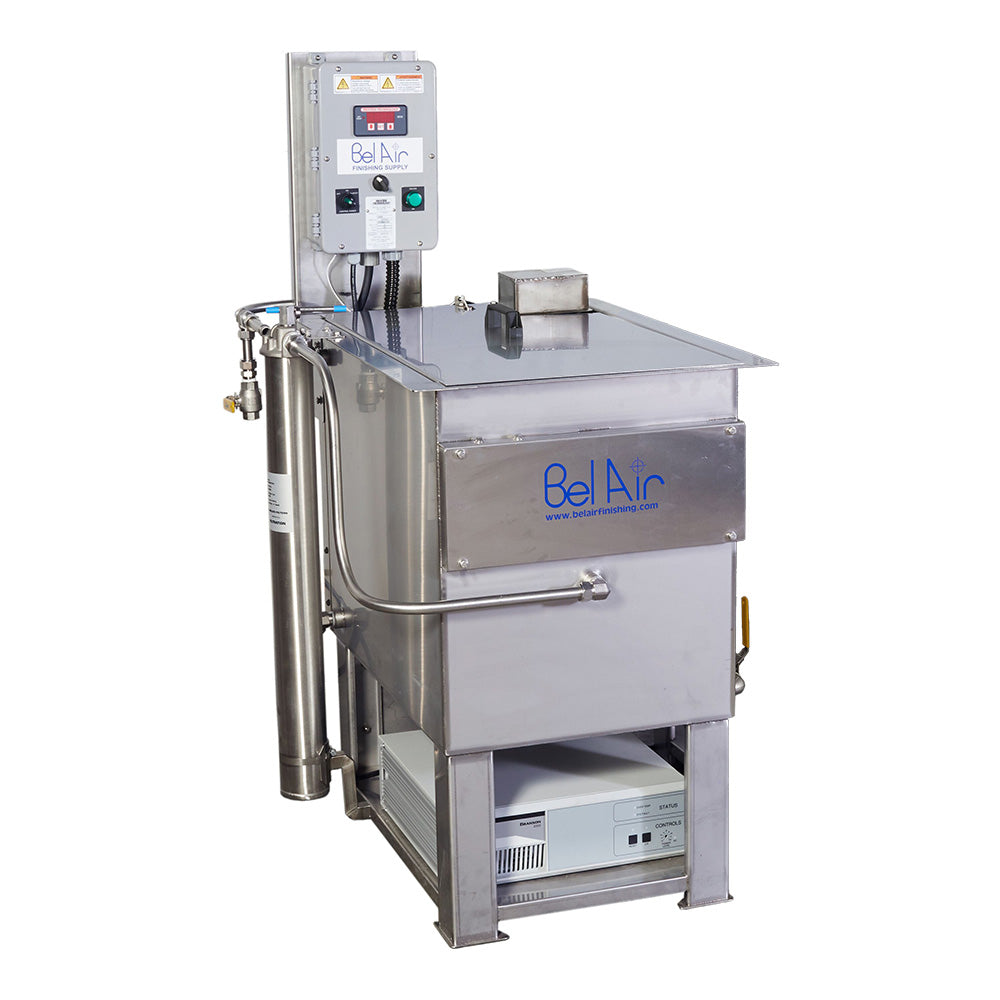

FM-CU 2024-1U Ultrasonic Clean Tank (Demo Unit) – Industrial Ultrasonic Cleaning System

The FM-CU 2024-1U Ultrasonic Clean Tank (Demo Unit) delivers precision ultrasonic cleaning for industrial parts, components, and assemblies. Built from TIG-welded T304 stainless steel and equipped with high-performance Branson ultrasonics, this system is ideal for aerospace, medical, automotive, and 3D post-processing applications.

This unit is a fully configured, single-tank system, including ultrasonics, filtration, and heating (not a base tank), and is ready for standalone use or integration into a multi-stage cleaning line.

Demo Unit – Discounted pricing available (limited availability)

Key Features

• Precision Ultrasonic Cleaning – 40 kHz transducers for deep, uniform cleaning
• Heavy-Duty Construction – 12-gauge TIG-welded stainless steel tank
• Included Filtration System – Removes contaminants and extends solution life
• Heated Cleaning Capability – 6–9 kW immersion heater with digital controls
• Ready-to-Run System – Fully equipped with ultrasonics, filtration, heating, and tank cover

System Specifications

Configuration

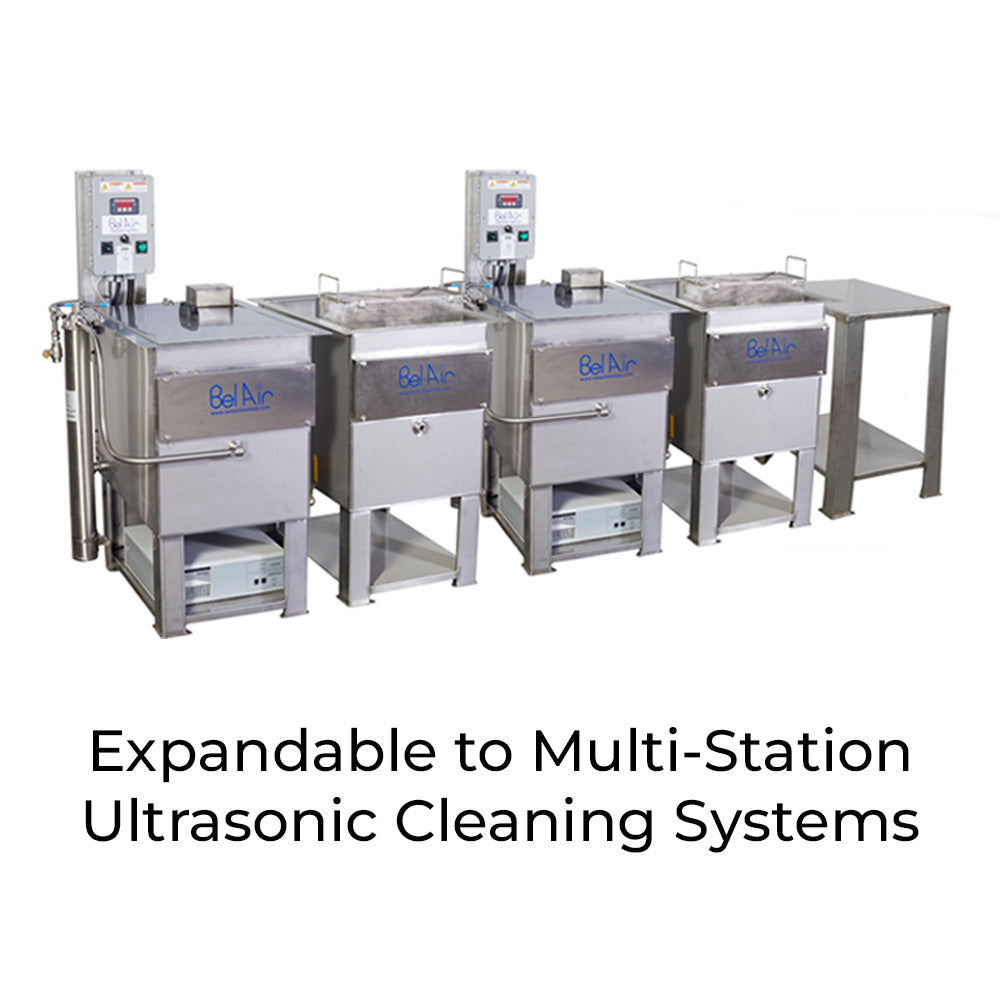

• Single-tank ultrasonic cleaning system (can be expanded into a multi-station line with additional tanks)

Tank Construction

• Material: TIG-welded 12-gauge T304 stainless steel
• Clear Work Envelope: ~24” L × 20” W × 16” D
• Inside Dimensions: ~28” L × 20” W × 23” D
• Elevated on stainless steel legs (~36” overall height)

Ultrasonic System

• Power Supply: Branson S8340-36
• Frequency: 40 kHz piezoelectric transducers
• Configuration: Bottom-mounted immersible transducers (field replaceable)
• Variable power + sweep frequency for consistent cavitation

Filtration System

• Integrated centrifugal pump system
• 15-micron filter cartridge for contaminant removal
• Rated up to 200°F operation

Heating System

• 6–9 kW immersion heater
• Digital temperature controller + pre-heat timer
• Stainless steel tank cover included for efficiency

Included with This Unit

• Ultrasonic cleaning tank with installed transducer housings (40 kHz)
• Branson ultrasonic power supply with controls
• Filtration system
• Heating system with controls
• Stainless steel tank cover
• (2) Stainless steel mesh baskets with handles & hinged tops

Ideal Applications

• Precision cleaning of machined components
• Aerospace & turbine parts
• Medical device cleaning
• 3D printed part cleaning (resin, metal, polymer)
• Oil, coolant, and debris removal

Optional Add-Ons (Available)

• Additional baskets
• Load/unload stations
• Multi-station integration (rinse/dry systems)
• Automated handling systems
