KATO W616 Series Carbide Rotary Burrs – High-Precision Deburring & Chamfering Tools
KATO W616 Series Carbide Rotary Burrs – High-Precision Deburring & Chamfering Tools
Regular price
$250.00
Regular price
Sale price
$250.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
The KATO W616 Series Carbide Rotary Burrs are precision-engineered cutting tools designed for deburring, chamfering, and edge finishing on a wide variety of materials. Featuring durable carbide construction and optimized blade geometry, these burrs deliver sharp, efficient cutting with excellent wear resistance.
Compatible with KATO Deburring Holders (DBR7-SC and DBR7-1D series), these tools are ideal for both front-side and front/back deburring applications in CNC machining centers, robots, and other automated equipment.
Condition: Brand New
Key Features:
- 90° blade angle ensures proper cutting force transmission with KATO deburring holders.
- Available in single cut (ideal for aluminum and non-metal materials) or cross cut (most common; reduces chatter, powder-like chips).
- Suitable for front-side only or front-and-back deburring depending on holder type.
- Long shank variants available for deeper or hard-to-reach features.
- Stable cutting performance with reduced clogging and smooth chip evacuation.

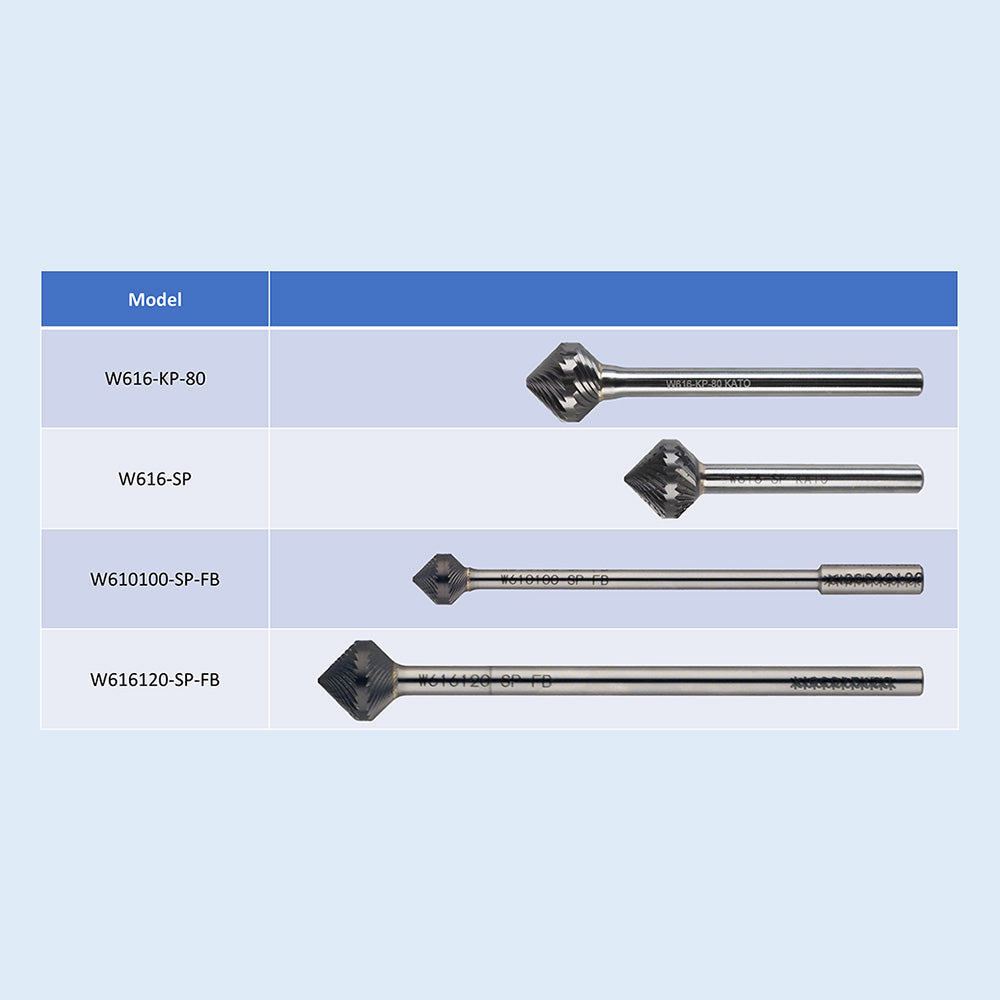

Specifications

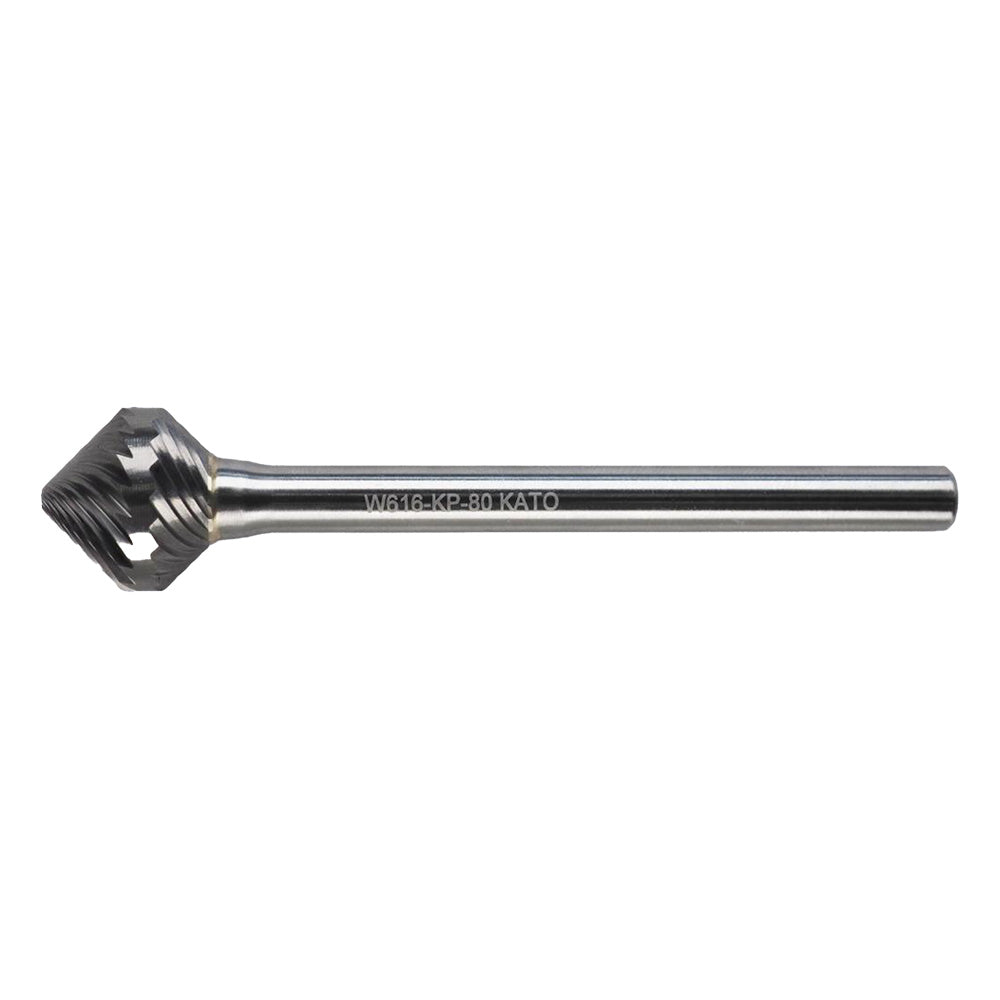

W616-KP-80
- d₁: 0.63 in (16 mm)
- d₂: 0.24 in (6 mm)
- L₀: 3.15 in (80 mm)
- L₁: 0.59 in (15 mm)
- Cutting Sides: Front & Back
- Cut Type: Single Cut
- Tip Angle: 90°
- Feature: Good for Aluminum

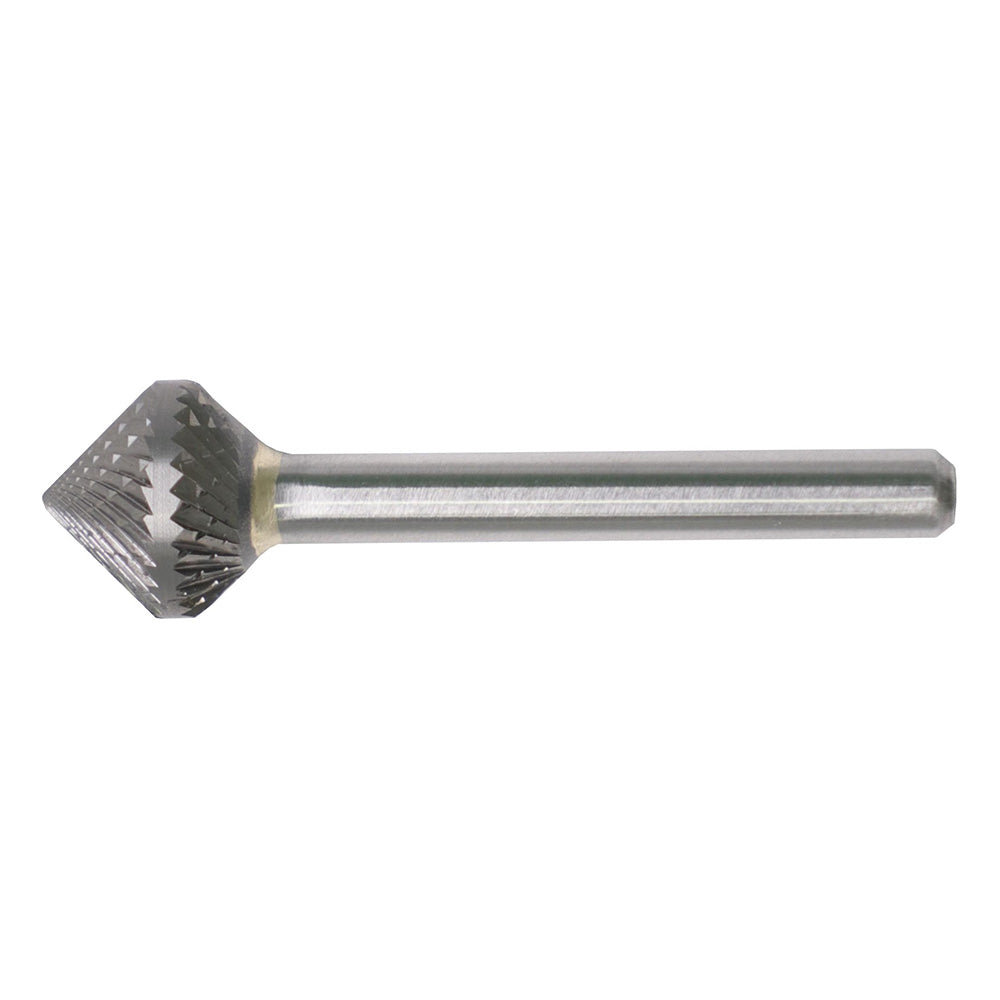

W616-SP
- d₁: 0.63 in (16 mm)
- d₂: 0.24 in (6 mm)
- L₀: 2.36 in (60 mm)
- L₁: 0.59 in (15 mm)
- Cutting Sides: Front & Back
- Cut Type: Cross Cut
- Tip Angle: 90°
- Feature: Most Common

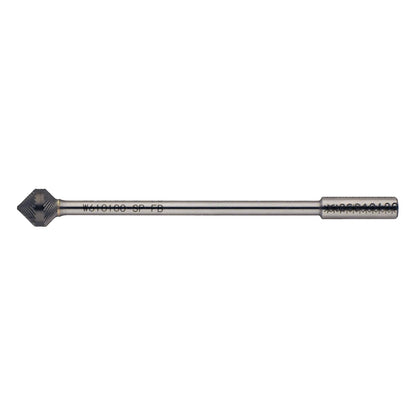

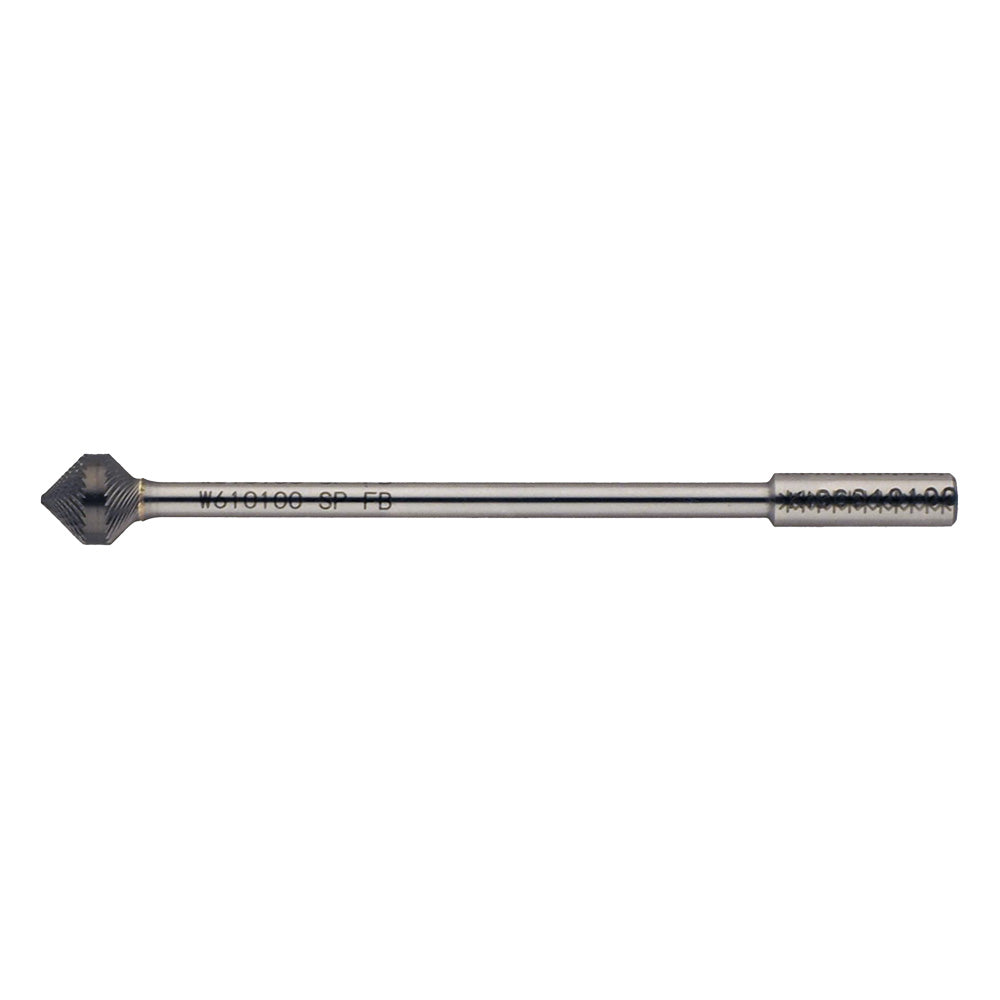

W610100-SP-FB
- d₁: 0.39 in (10 mm)
- d₂: 0.24 in (6 mm)
- L₀: 3.94 in (100 mm)
- L₁: 0.39 in (10 mm)
- Cutting Sides: Front & Back
- Cut Type: Cross Cut
- Tip Angle: 90°
- Feature: Small Head, Long Shank

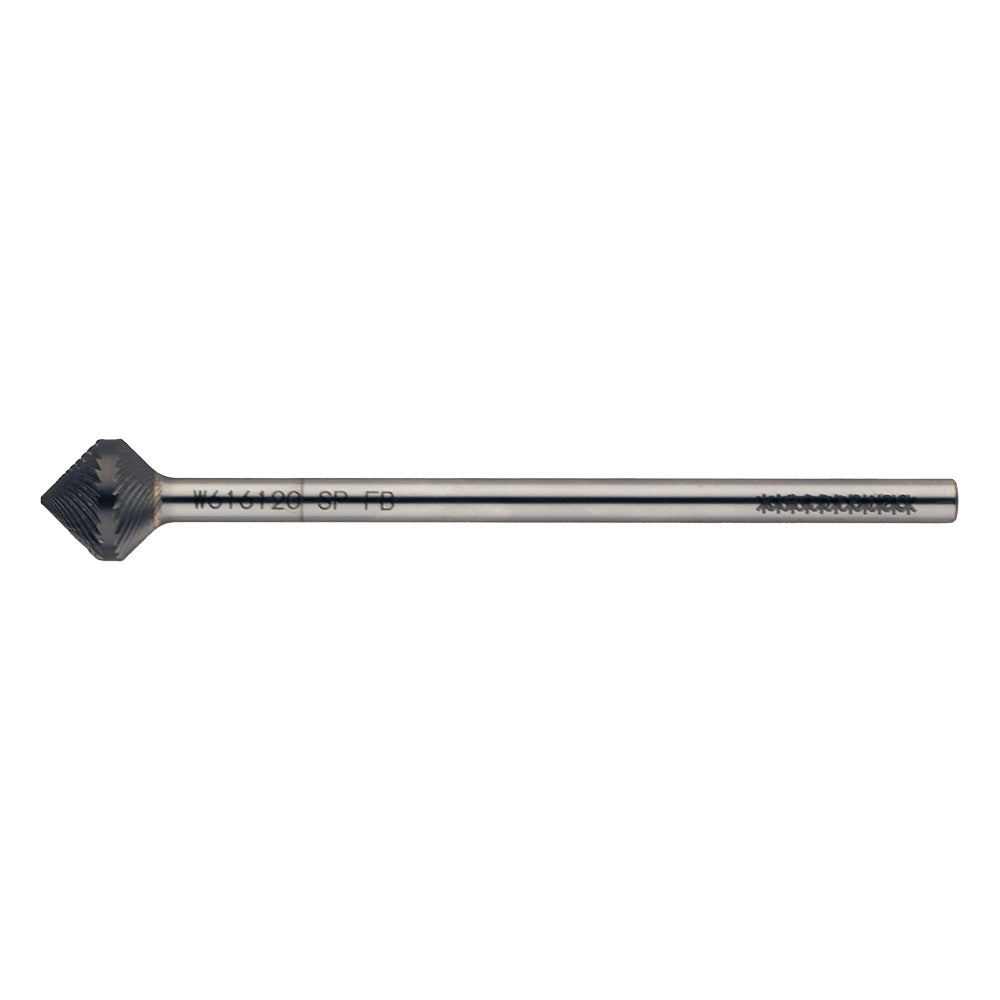

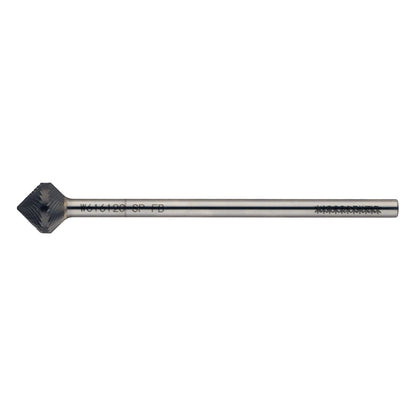

W616120-SP-FB
- d₁: 0.63 in (16 mm)
- d₂: 0.24 in (6 mm)
- L₀: 4.72 in (120 mm)
- L₁: 0.51 in (13 mm)
- Cutting Sides: Front & Back
- Cut Type: Cross Cut
- Tip Angle: 90°
- Feature: Long Shank
